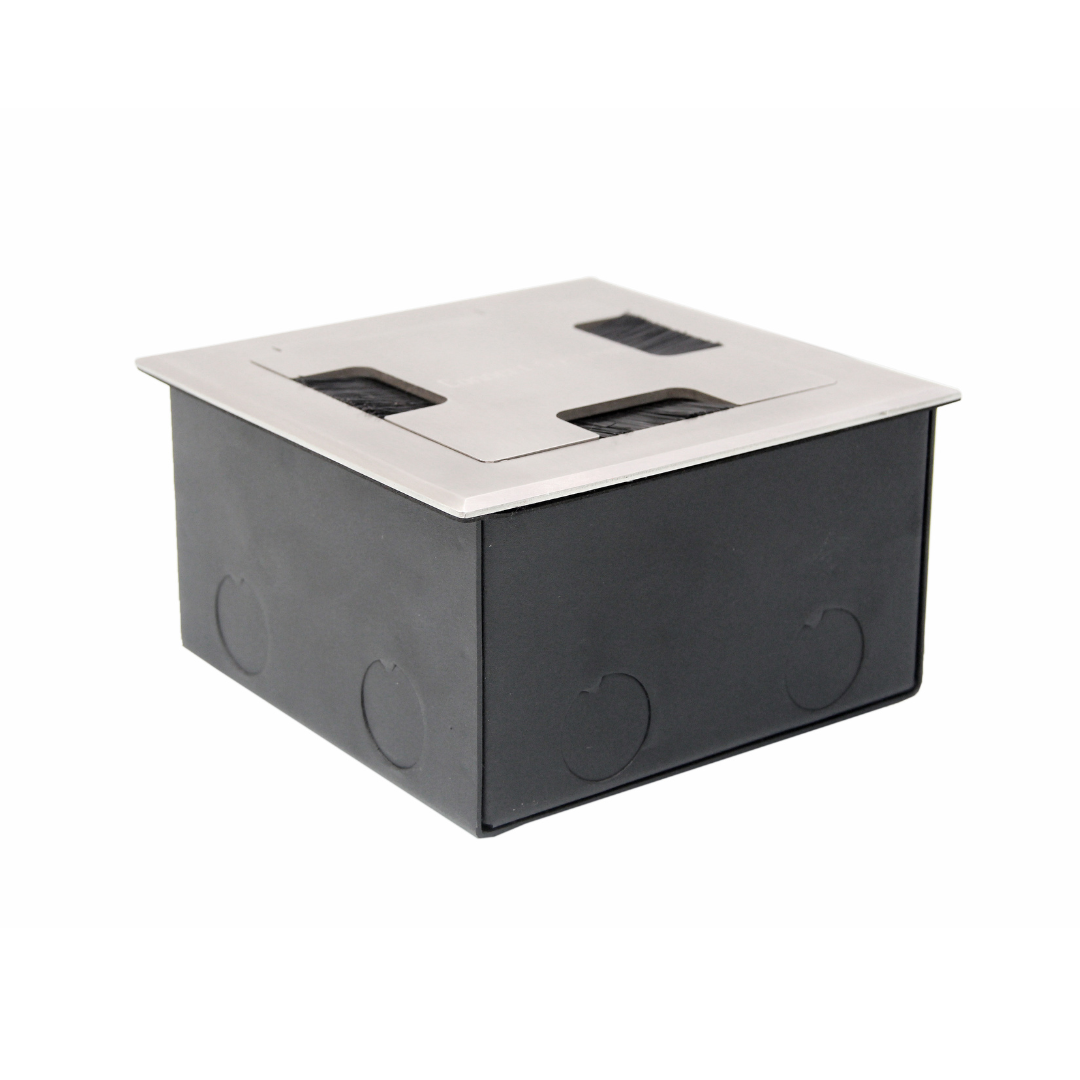

Metal Floor Box

Product Information:

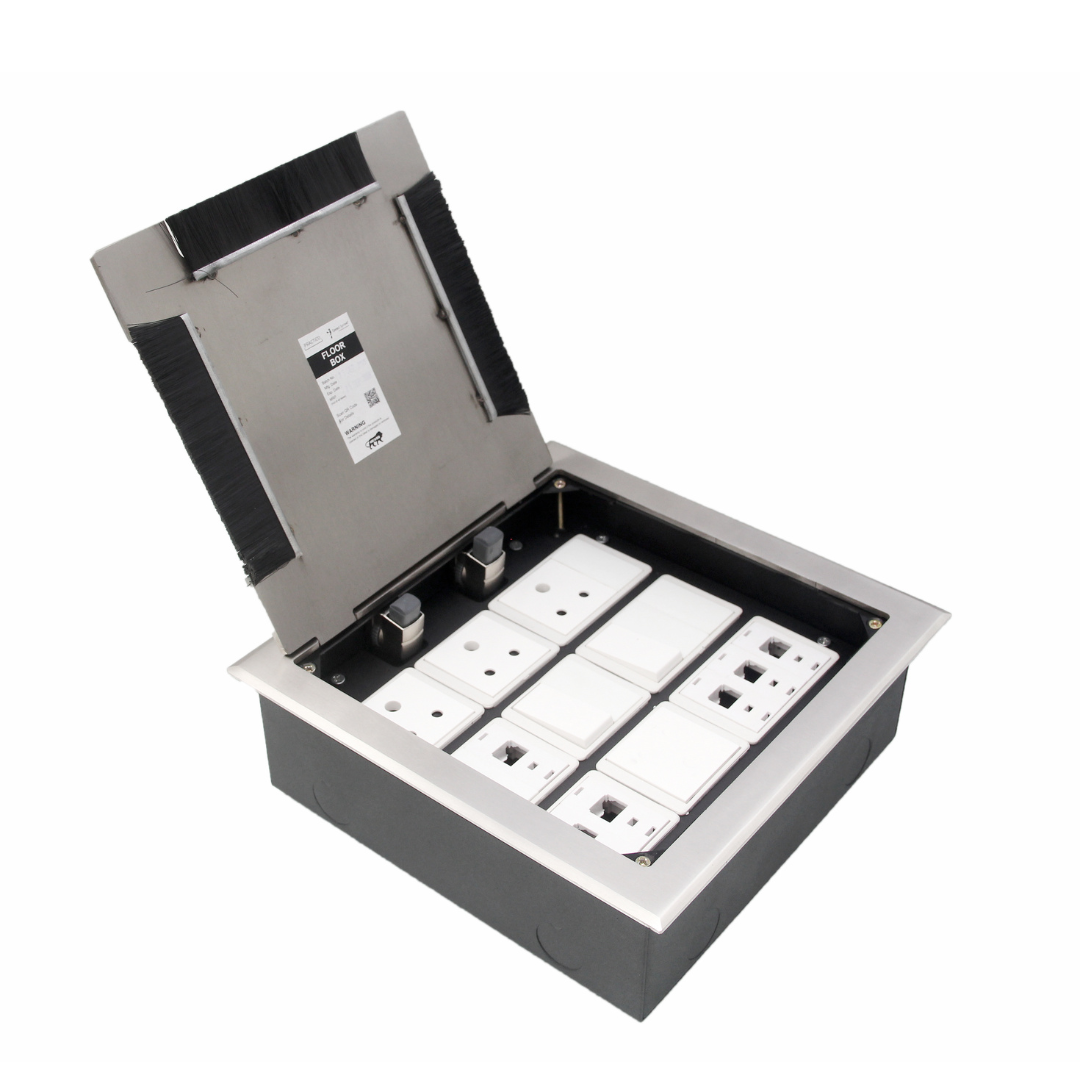

The Metal Floor Box is a versatile connectivity solution that integrates Power, DATA, and AV Connectivity into a single unit, it’s designed specifically for commercial environments with high foot traffic. Available in 3, 6, 10, 15, and 21 module box configurations, the floor box is constructed with a durable stainless steel, brass, or steel flap cover, capable of supporting up to 800 kg, ensuring its longevity and durability in high-traffic areas. It also provides ample space inside to plug in sockets while keeping the lid closed, maintaining a safe and organized environment. These junction floor boxes come in multiple depth sizes to meet each customer’s specific requirements. A unique feature of the Metal Floor Box is its three-sided opening for cable outlets, allowing users to plug in from any side of the box. It also incorporates a soft-closing feature, ensuring smooth and noiseless closing of the top lid. The boxes are ideal for both screed and raised floor applications, making them an excellent choice for offices and commercial spaces.

Free worldwide shipping
Delivers in: 3-7 Working Days Shipping & Return

SKU: EGAB16M-5-1 Categories: Electrical Floor Boxes, Metal Floor box

Key Features:

Overview–

Integrated Socket, DATA, and AV Connectivity
Engineered for strength and durability, with a load capacity of 800 kg

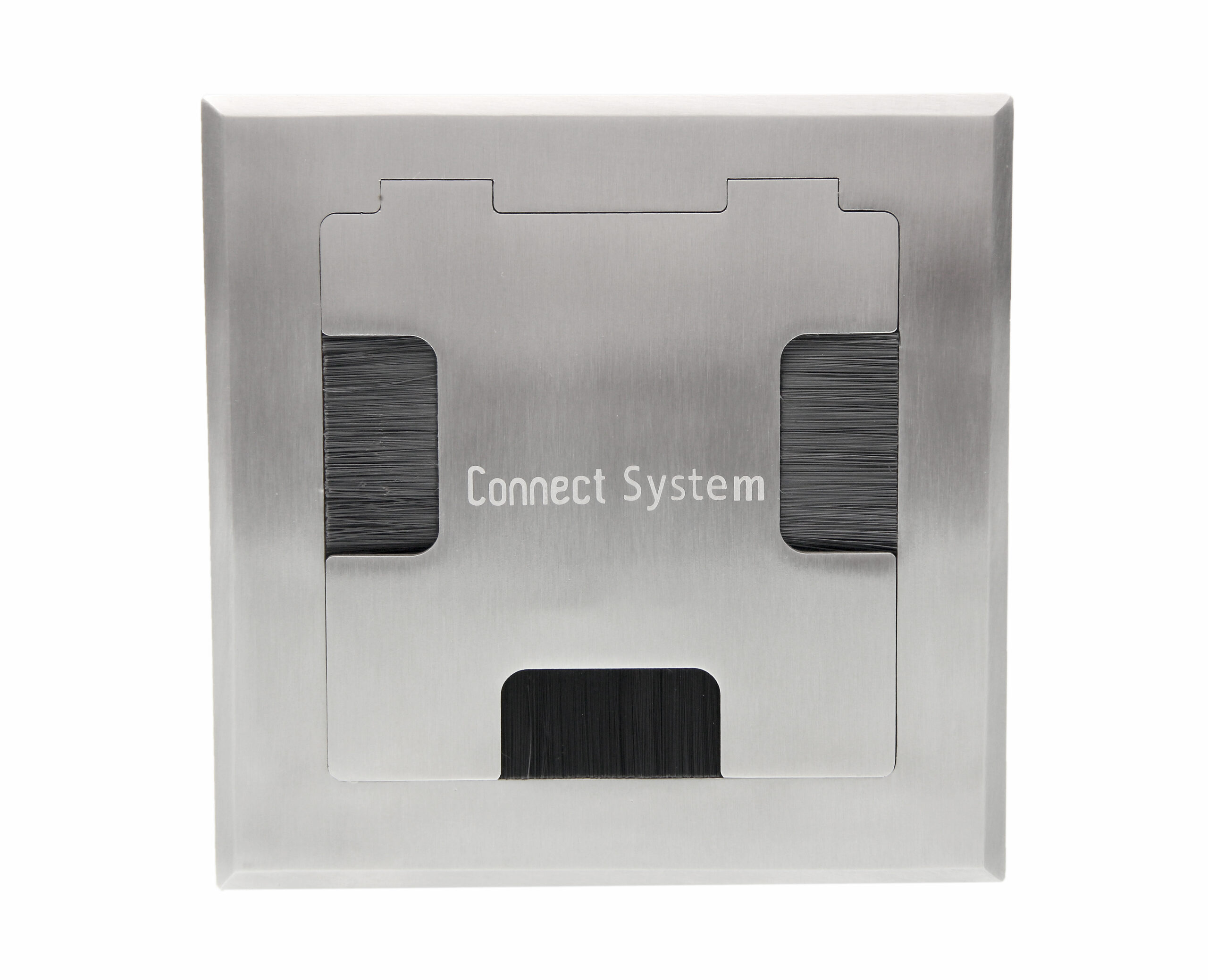

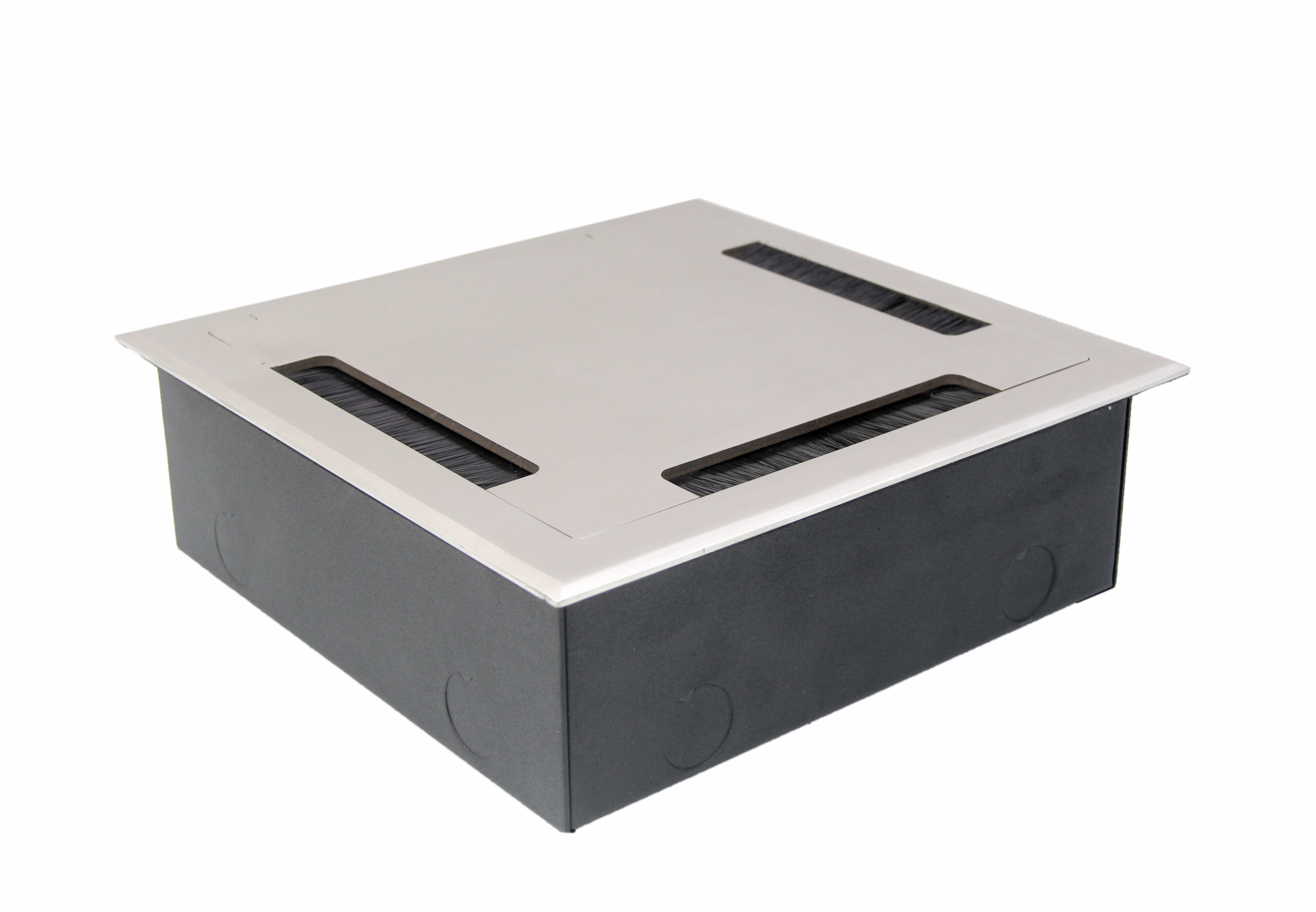

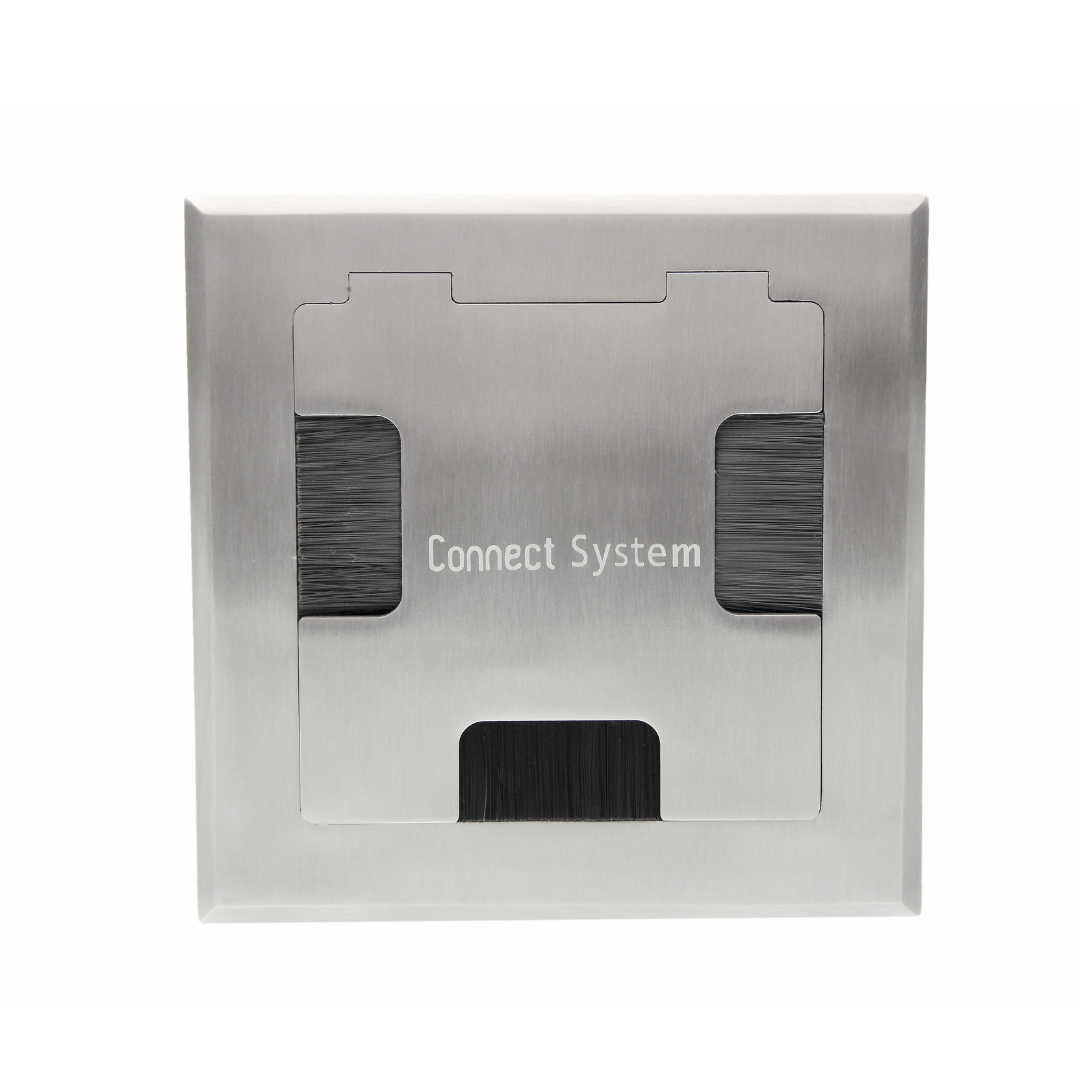

Easy opening with three-sided brushes allows access to sockets from any side of the floor box
Prevents tripping hazards and damage, and is compatible with various flooring types for versatile installation
Available in multiple depths for plinth installation and various sizes to accommodate different Switch and Socket requirements
Compatible socket fixing- aligned with all leading socket brands like MK, ABB, Legard, Schneider,

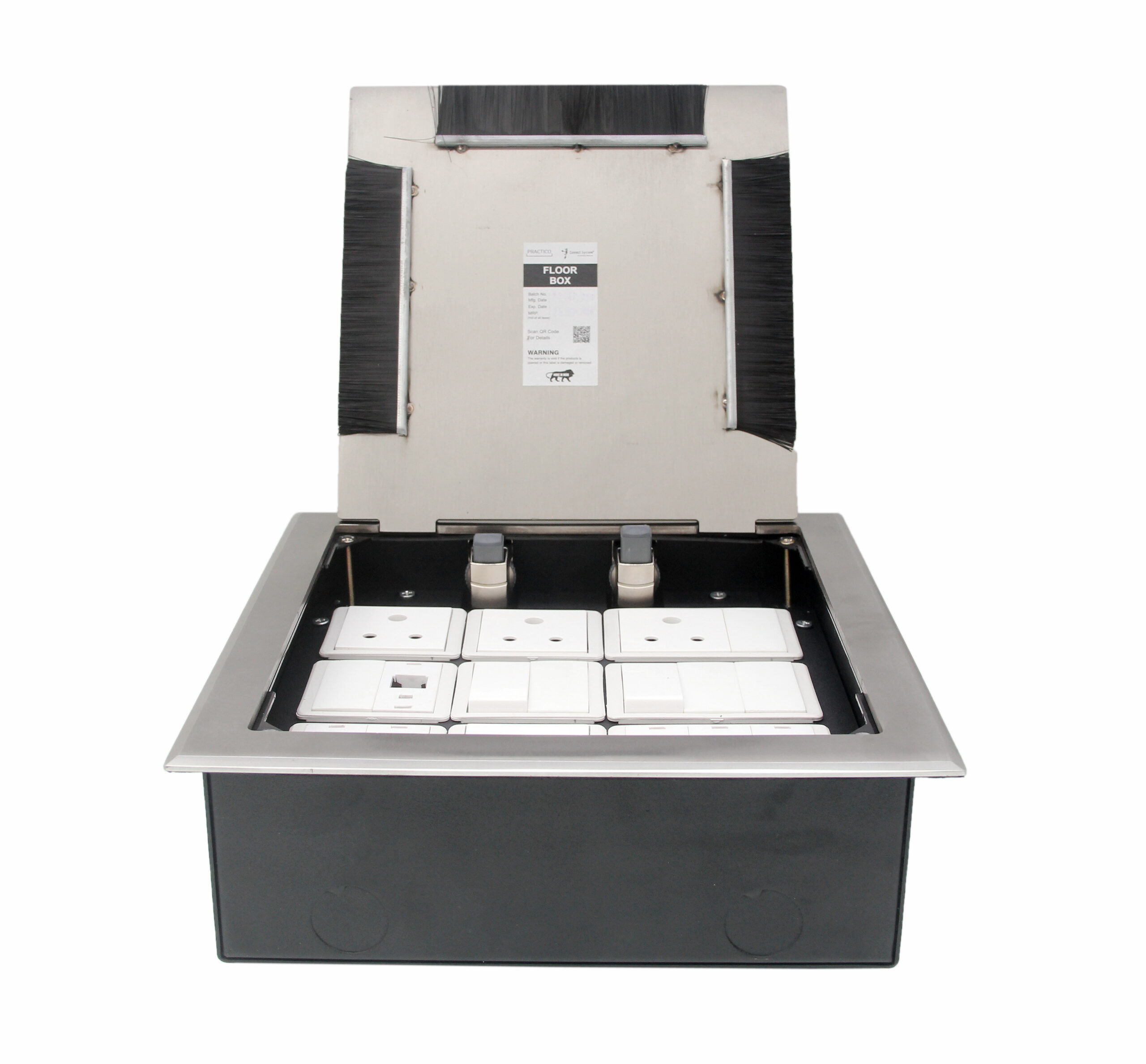

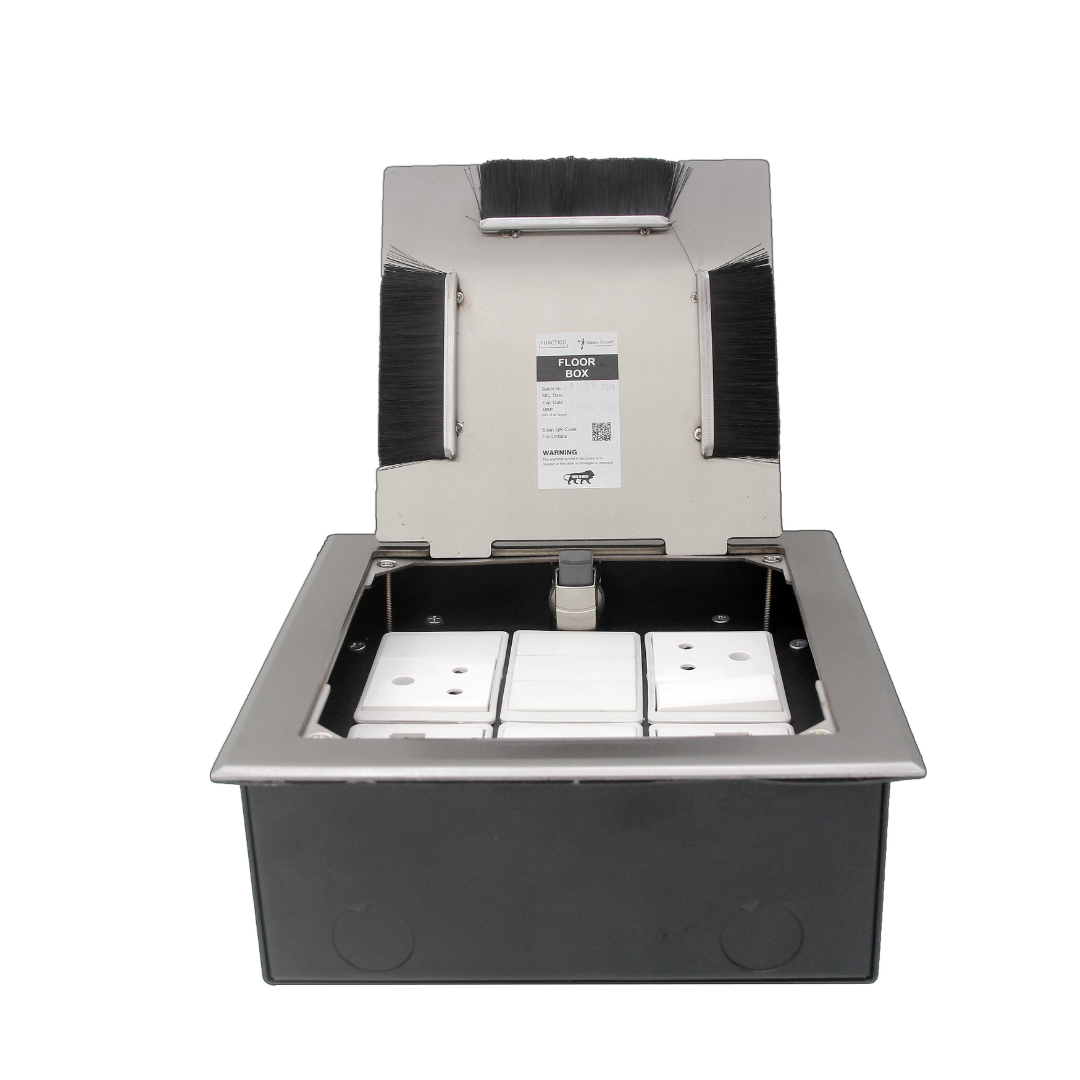

Lid remains closed while plugged in, allowing Sockets to stay connected for enhanced safety and a neat appearance
Ideal for offices, hospitals, schools, showrooms, hotels, and other high-traffic public spaces
Available in various material options, including stainless steel, brass, and steel bodies
Approved by leading testing organisations, including SGS Lab (UK), Bureau of Indian Standards (ISI Mark), Underwriters Laboratories (UL), TÜV (Germany), and CE Certified

Technical lnformation:

Details:

Rated for 220-250V
Panel Material: Brass alloy, Stainless steel and Steel
Standard Depth: Available in 65 mm, 75 mm, 140 mm, and (can also customize)
Option to Fix Socket: Straight/ Inclined
Suitable for Concrete and Screed flooring
A soft closing feature that makes, the flap softly close when the gap is closed
When connected, it can withstand the weight of pedestrians while protecting the cable from pressure and stress

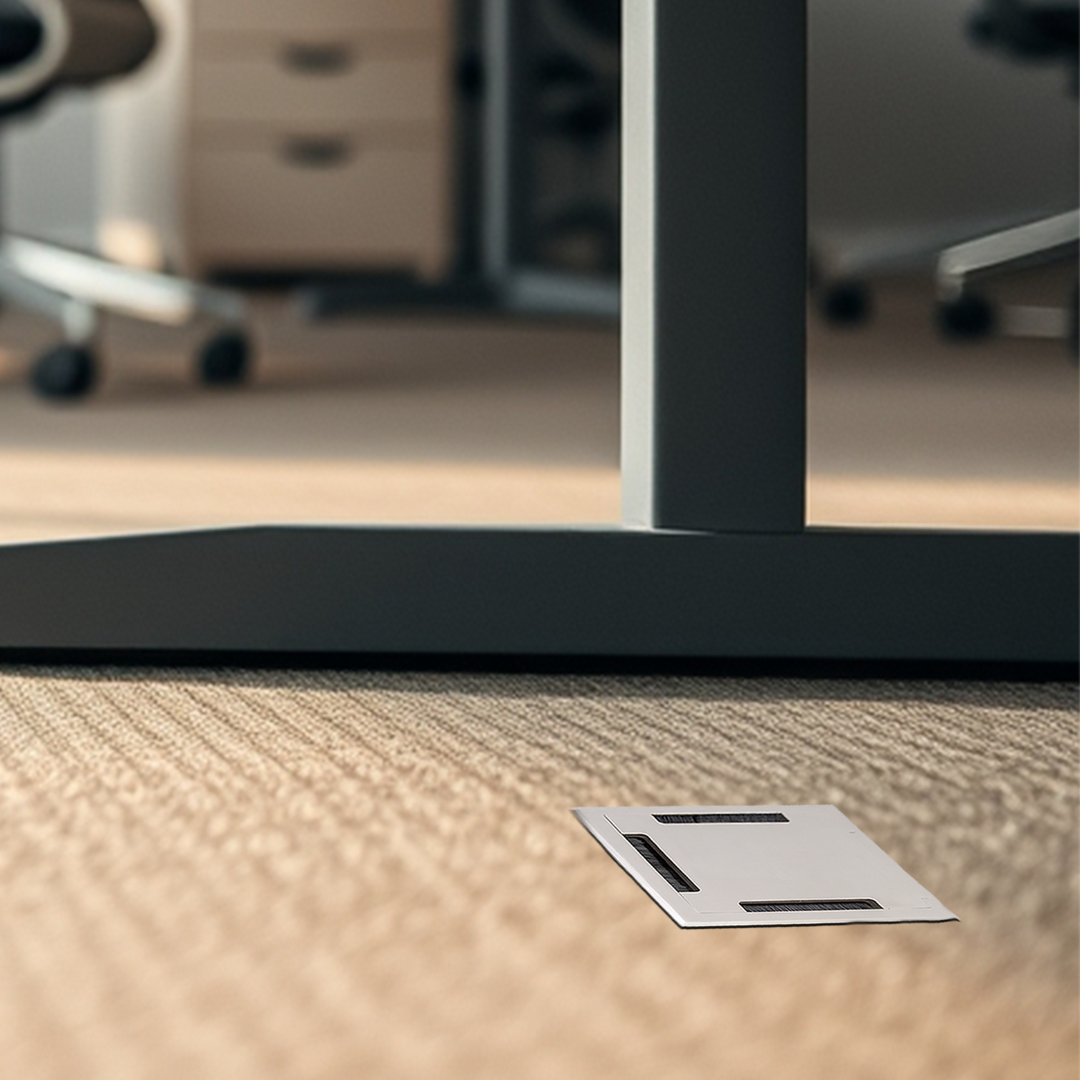

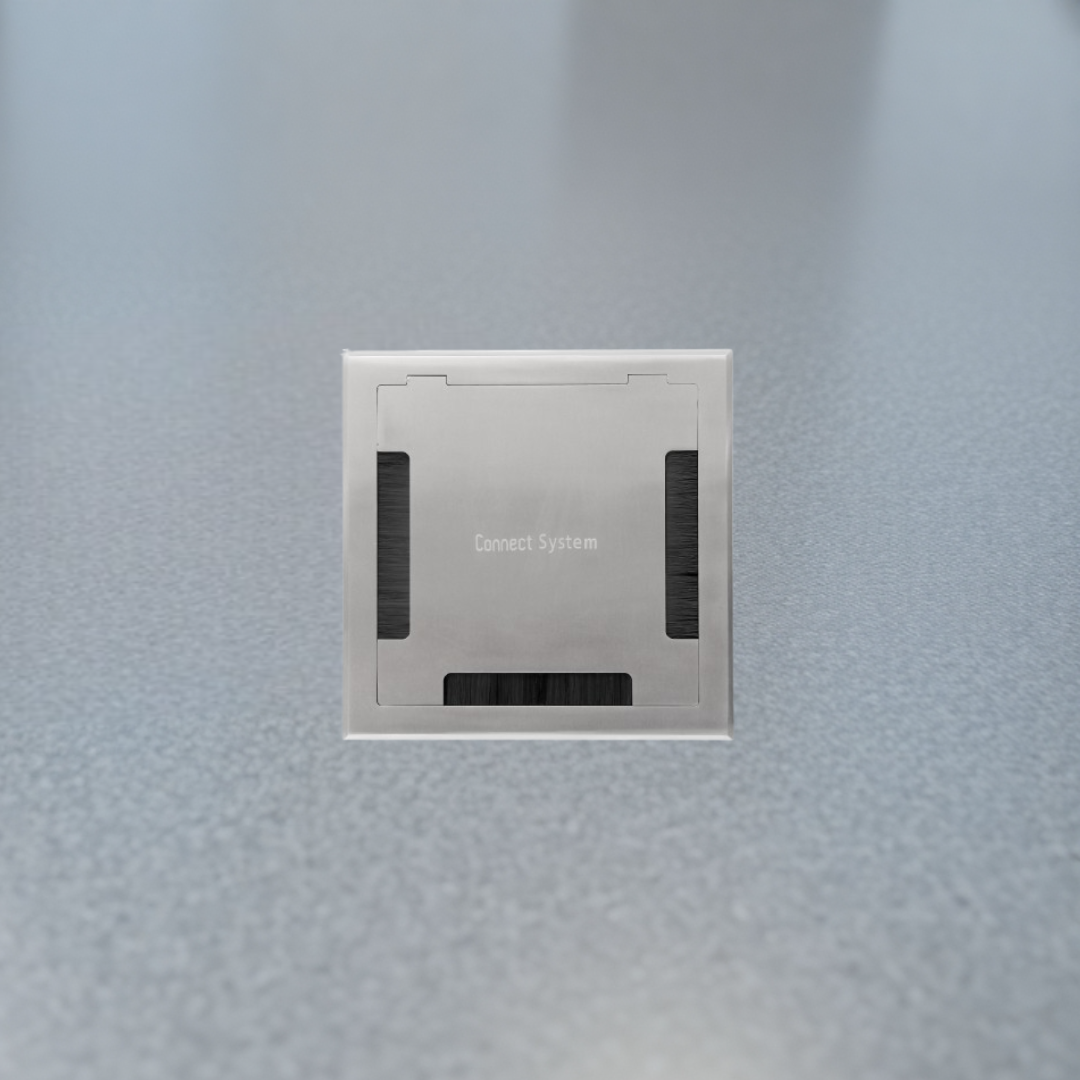

Perfectly flush with the finished floor
The top cover is completely covered when using the box
Available in 3, 6, 10, 15, and 21 modules
Can be customizable as per requirement
